More informationCall buttons integrated in button modules for the new SKYLINE door panel, to be located in the door panel frame.
Injected zamak call buttons with chrome finish, in line with the curved profile of the plate. Waterproof for outdoors.
Equipped with special gold-plated contacts that provide greater durability.
Pressing the call button is confirmed by an acoustic warning emitted by the amplifier.
The pushbuttons include a polycarbonate card holder (front access), to house a label with the name of the homeowner and the door number. Integrated lighting that allows the card holders to be viewed, even in complete darkness.
They are metallic and have a rounded shape in line with the curved profile of the plate.
The assembly of the pushbutton modules is extremely simple. Once the combination of modules has been chosen according to the number of dwellings, we proceed to fit them into the frame of the plate.
The anchoring system consists of a slight pressure from the inside to the outside. Finally, the different pushbutton modules are joined by means of easily pluggable connectors that are included.
Single and double pushbutton modules available.
The New SKYLINE electronic and video door entry panel is a robust and elegant panel, which stands out for its durability and beauty, resistance and reliability.
SKYLINE is the new line of electronic door entry and video door entry panels with a continuous profile and modular composition from Fermax. The line is made up of 8 frames of different sizes where the different modules are easily fitted: push buttons, card holder, camera, amplifier, access control, etc. Frames allow a specified number of modules to be attached. There are two sizes of modules: V and W. The W modules are twice the size of the V modules.
Measures Modules.
- Module V: 105.2x47.5 mm (width-height).
- Module W: 105.2x95 mm (width-height).

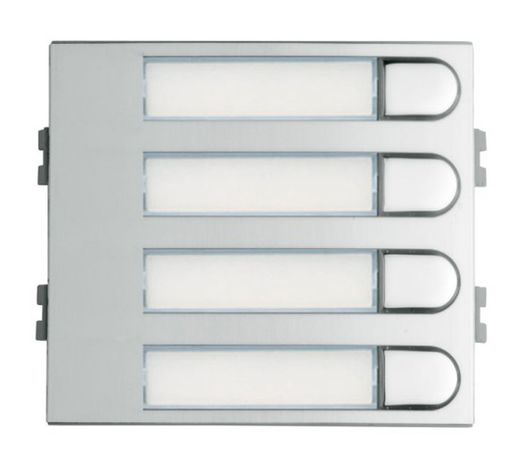

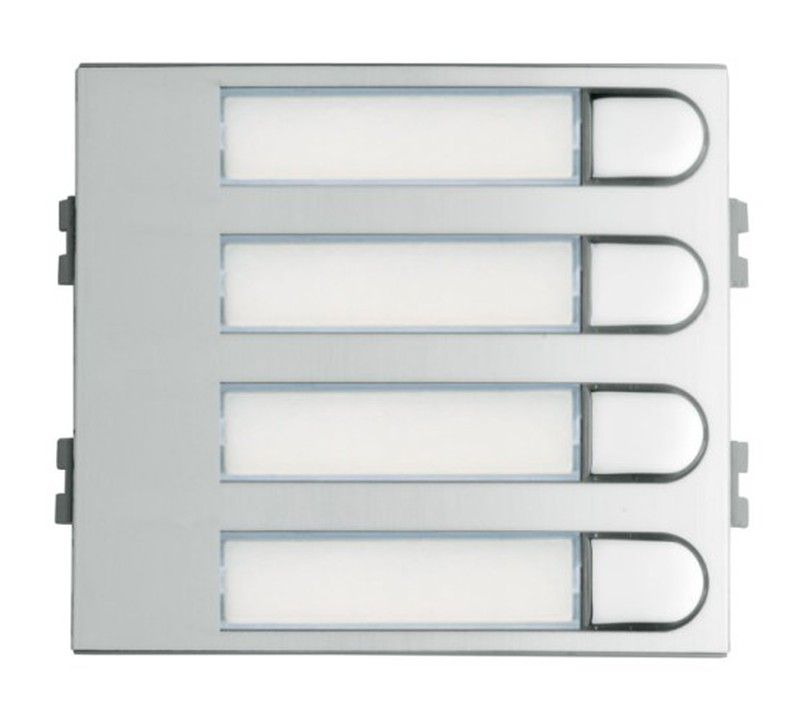

Features of the 104 BUS2 / VDS button module:
- It is possible to combine two or more panels, as long as they are from the same series, to have a greater capacity for pushbuttons and accessories.
- Module to be located in the frame of the New SKYLINE plate.
- Consumption: 3 mA (lighting per row of buttons).
- Developed for VDS and BUS2 systems. They do not require call extension modules.
