More informationMain characteristics of the Si-30 condensate evacuation pump:
- New technology piston, patented
- High flow: a single reference for a product adapted to any air conditioner up to 20 kW.
- Resistance in all kinds of environments. Allows evacuation of small particles.
- Safe Drain Device maintains pump prime and prolongs pump life.
- High flow rate reduces operating time and limits electrical consumption.
- Quiet operation : 20 dBA, tested in the laboratory.
- The power of the air conditioner and the volume of condensate to be evacuated do not modify the sound volume of the pump.

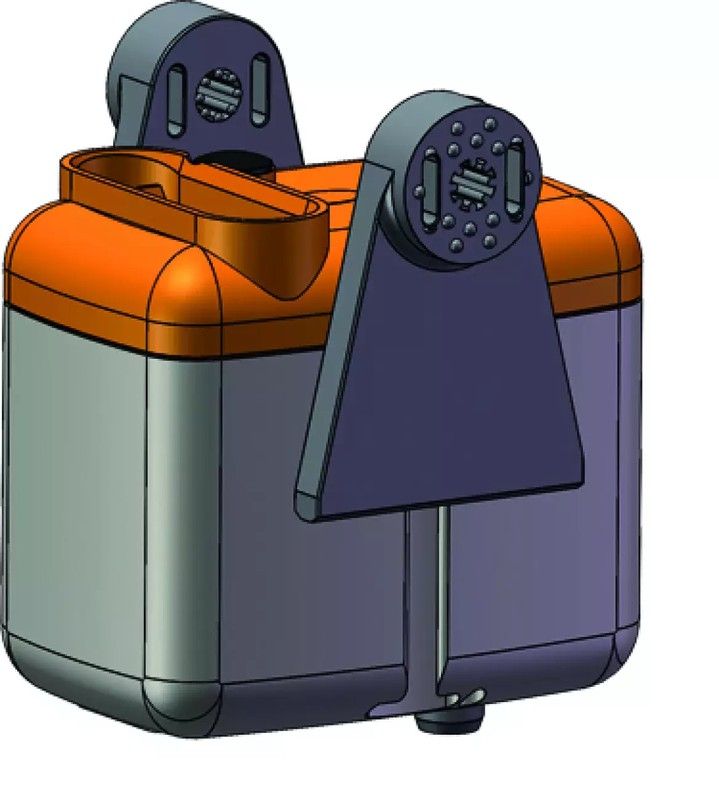

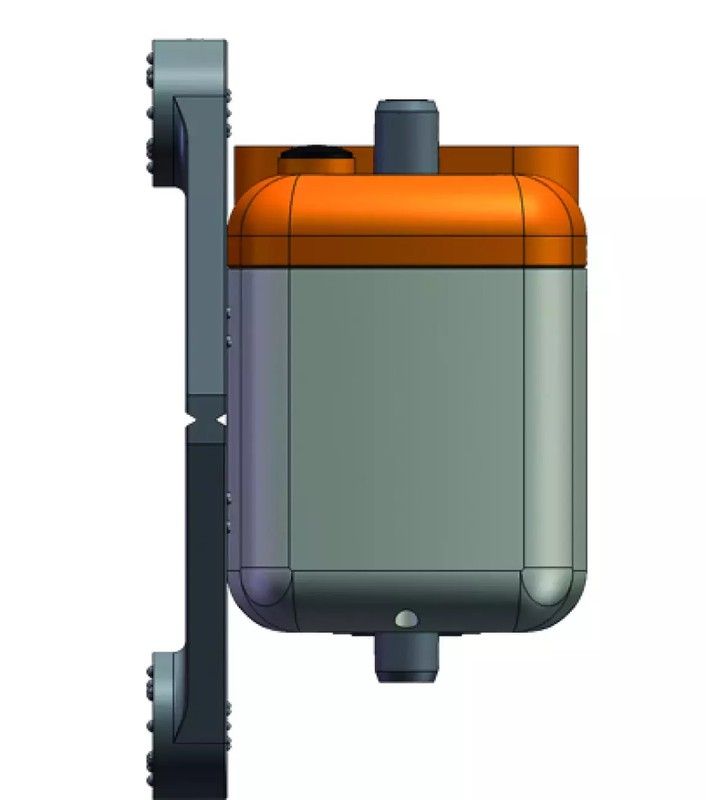

- Fixing plate designed to reduce vibrations transmitted to the wall or to the panel and that allows mounting on the wall, on the pipes or suspended
- Compact shape.
- Removable electrical socket to facilitate maintenance.
Main characteristics of the evacuation pump Si-30 condensates:
Maximum flow: 20 l/h
Maximum suction height: 3m
Maximum discharge height: 10m (flow = 4 l/h)
Maximum pressure: 14 m ( flow rate = 0 l/h)
Acoustic level at 1m: 20 dBa
Electrical power: 230 V~ 50 Hz - 14 W
Insulation class: (double insulation iento)
Detection levels: ON: 16 mm, OFF: 11 mm, AL: 19 mm
Alarm contact: NC 8 A resistive – 250 V
Thermal protection: 115 °C (automatic reset)
Max. condensates: 35 °C
Operation cycle: 100% Continuous operation
Protection: IP20
Safety standards: CE &, EAC
RoHS Directive: Compliant equipment
WEEE Directive: Compliant equipment
Dimensions: 135x135x90mm
Weight (with packaging): 0.48kg

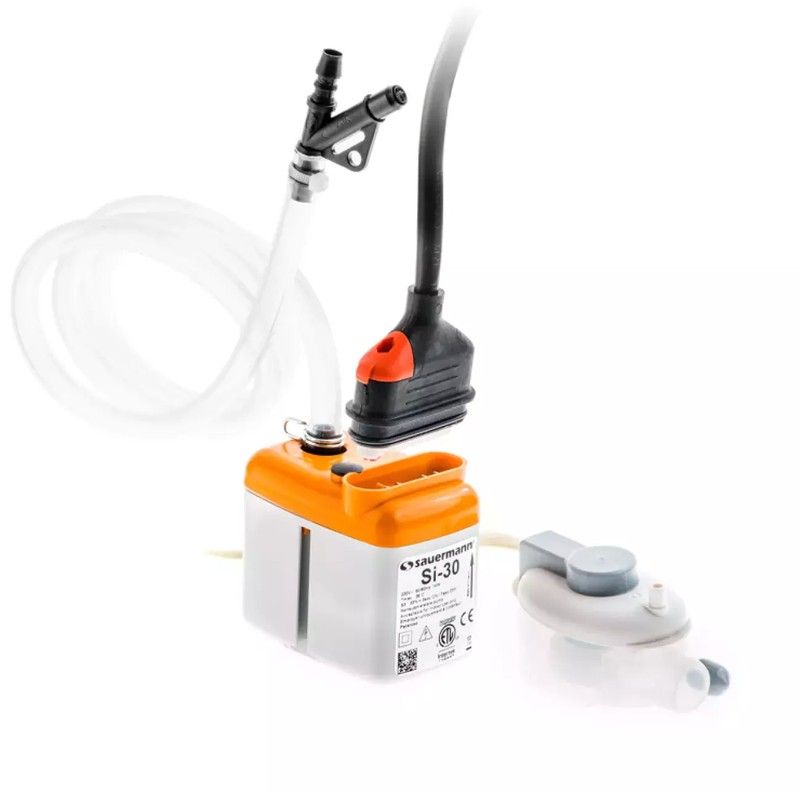

Kit contents:
- 1 Piston pump Si-30
- 1 Anti-vibration fixing plate< br>- 1 1.5 m detachable cable
- 1 6 rilsan, 2.5 x 100 mm
- 1 Detection block
- 1 Detection block installation kit:
- 1 connector 90° Øint. 15 x L 60mm, ventilation tube Øint. 4 x L 75 mm, fixing guide, adhesive.
Applications:
For any air conditioner up to 20 kW such as wall-mounted air conditioners, ceiling units, duct machines.
