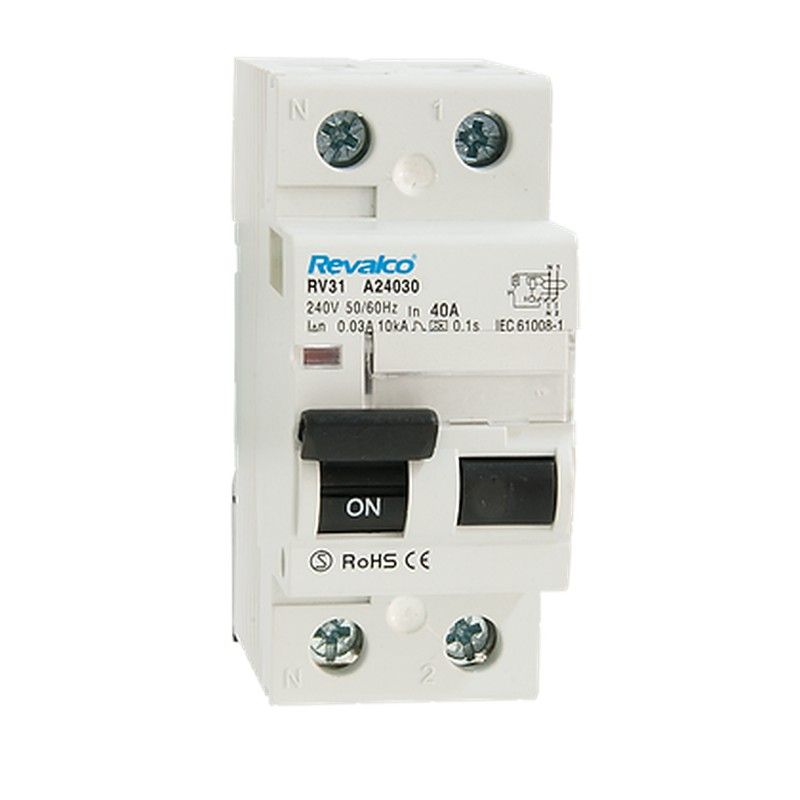

Differential switch RV31-E 2P 40A
Brand: REVALCO
Reference: RV31AC24030E
Offer: £11.12
PVP: £45.31
Product sold out, not available at this time.
Next stock entry on the way, expected
Description
RV31-E differential switch with breaking capacity: 10kA and operating voltage: 240/415V AC. It complies with the international standard IEC61008-1. Compatible with RV30 series
Features
- Number of modules:
- 2
Packs that include this product
Details
More information
Main characteristics of the RV31-E 2P 40A differential switch:
- Elegant appearance, the cover and the arc-shaped handle make it easy to operate.
- Contact position indicator window.
- Transparent cover designed to carry label
- In the event of an overload, to the protected circuit, the switch handle trips and remains in the center position, allowing a quick fix to the faulty line. Handle cannot remain in such position when manually operated.
- Provides fault protection to faulty line. The field cannot remain in such a position when operated manually.
- Provides earth fault/leakage current protection and isolation function.
- High short-circuit current withstand capacity.
- Equipped with finger-protected connection terminals.
- Fire-resistant plastic parts withstand abnormal heating and strong impact.
- Automatically disconnects the circuit when leakage current / ground fault occurs and exceeds the nominal sensitivity.
- Independent of the power supply and line voltage, and free from external interference voltage fluctuation.
Technical characteristics of the differential switch RV31-E 2P 40A:
- Model: RV3-1E
- Breaking capacity: 10kA IEC61008-1
- Mode: electromagnetic type
- Number of Poles: 2P
- Rated current (A): 30
- Nominal voltage: 240/415V AC
- Nominal frequency: 50 / 60 Hz
- Electromechanical resistance: 4000 cycles
- Rated impulse withstand voltage: 10KA
- Residual current characteristics: A, AC, G, S
- Classes and use: ACD = AC leakage. Residential
- Protection class: IP20
- Contact position indication
- Compatible with RV30 series
- Allows the use of pin-type connection combs
- Connection capacity:
Rigid conductor 25mm2
Tightening torque: 2.0Nm
- Installation:
On 35mm symmetrical DIN rail.
Panel mounting
Terminal connection height: 19 mm
- Elegant appearance, the cover and the arc-shaped handle make it easy to operate.
- Contact position indicator window.
- Transparent cover designed to carry label
- In the event of an overload, to the protected circuit, the switch handle trips and remains in the center position, allowing a quick fix to the faulty line. Handle cannot remain in such position when manually operated.
- Provides fault protection to faulty line. The field cannot remain in such a position when operated manually.
- Provides earth fault/leakage current protection and isolation function.
- High short-circuit current withstand capacity.
- Equipped with finger-protected connection terminals.
- Fire-resistant plastic parts withstand abnormal heating and strong impact.
- Automatically disconnects the circuit when leakage current / ground fault occurs and exceeds the nominal sensitivity.
- Independent of the power supply and line voltage, and free from external interference voltage fluctuation.
Technical characteristics of the differential switch RV31-E 2P 40A:
- Model: RV3-1E
- Breaking capacity: 10kA IEC61008-1
- Mode: electromagnetic type
- Number of Poles: 2P
- Rated current (A): 30
- Nominal voltage: 240/415V AC
- Nominal frequency: 50 / 60 Hz
- Electromechanical resistance: 4000 cycles
- Rated impulse withstand voltage: 10KA
- Residual current characteristics: A, AC, G, S
- Classes and use: ACD = AC leakage. Residential
- Protection class: IP20
- Contact position indication
- Compatible with RV30 series
- Allows the use of pin-type connection combs
- Connection capacity:
Rigid conductor 25mm2
Tightening torque: 2.0Nm
- Installation:
On 35mm symmetrical DIN rail.
Panel mounting
Terminal connection height: 19 mm
