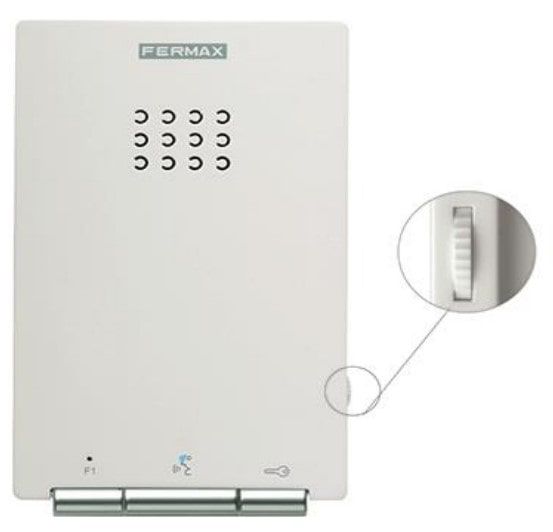

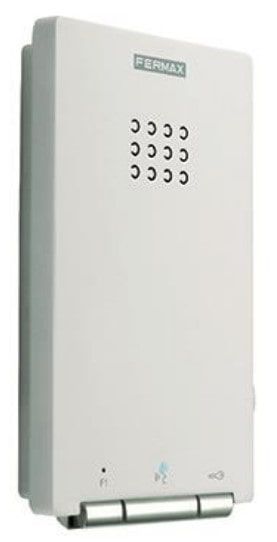

iLOFT DUOX PLUS Telephone

The iLOFT telephone is a compact and extra-flat electronic entryphone that works in hands-free conversation mode with the street panel. It can also be set to Push-To-Talk mode if needed in very noisy environments. Both the call volume and the conversation volume are adjusted by means of a wheel control in a very intuitive way. Made of ABS plastic resistant to ultraviolet rays and with an elegant matte finish that makes it easy to clean. It is installed on the surface. Pushbuttons: Button to activate/deactivate communication with the street panel. Lock release and call to guard unit (if there is one, press with the telephone in rest). Button for additional functions: stair light relay, opening of a second door or gate, panic call, etc.
System: DUOX PLUS (2 digital wires)

Technical characteristics of the iLOFT DUOX PLUS telephone:
- Auto-ignition: with this functionality it is possible to start a conversation with the street panel without prior call. (with panel no. 0 of its own block or with the last panel from which the call was made and during the 30 s. after its completion).
- Mounting: surface.
- Volume regulation ring with sliding wheel. Do Not Disturb mode signaled by red led.
- Doorbell: for direct connection of the house call button to the telephone.
- Private communication. Secret conversation.
- 5 selectable melodies.
- Configurable automatic door opening function. Signaling with green led.
- Configurable Push-To-Talk mode.
- Line adapter included (A, C, default position OFF).
- Time to answer or open from the moment the call: 30s.
- Conversation time: 90s.
- Supply voltage: 18-24 Vdc
- Consumption:
Standby: 0.4 W
Maximum: 3.6 W
- Operating temperature: [-5ºC, +40ºC]
- Connection terminals: Bin, Bin, Bout, Bout, -, A+, F1, T
- Technology: DUOX
- Dimensions: 90x146.5x20mm
- Weight: 0.169 kg
