Kit VID MARINE VEO-XS WIFI DUOX PLUS 1 line

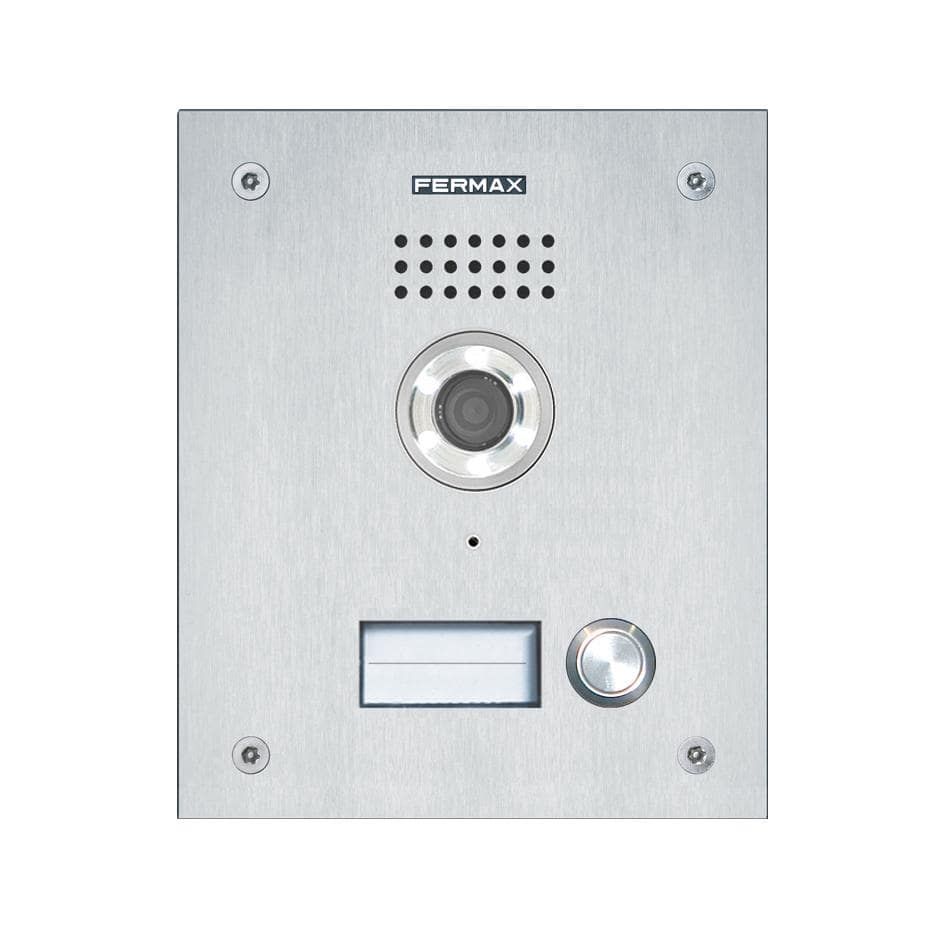

The kits include all the necessary material for installation: MARINE entrance panel made of high-quality and resistant AISI 316L stainless steel, VEO-XS WIFI monitor and power supply.

In addition, they work with DUOX PLUS, a completely digital intercom and video intercom and technology on two non-polarized wires, which simplifies its installation while maintaining the highest quality in the product and design.

Includes the VEO-XS WIFI DUOX PLUS monitor as standard, equipped with connection Wi-Fi that allows calls to be forwarded to mobile devices.

Thanks to the Fermax BLUE application, available for free on the Play Store and App Store, the video door entry functions can be managed directly from a mobile or tablet, to connect to your home, wherever you are. By connecting your DUOX PLUS WiFi monitors with the BLUE app, a range of possibilities will open up. Of all of them, we highlight two that will be key: Divert calls from the video intercom to your mobile and open the door from the distance.

They also include the Photocaller function as standard, which automatically captures an image of the person calling . If the user decides to activate this function, the monitor stores up to 150 images, indicating the date and time they were taken. When the maximum capacity has been reached, when taking a new photo, the first one stored will be deleted. On the screen it always indicates if there are photos without viewing or if the date / time are not set.

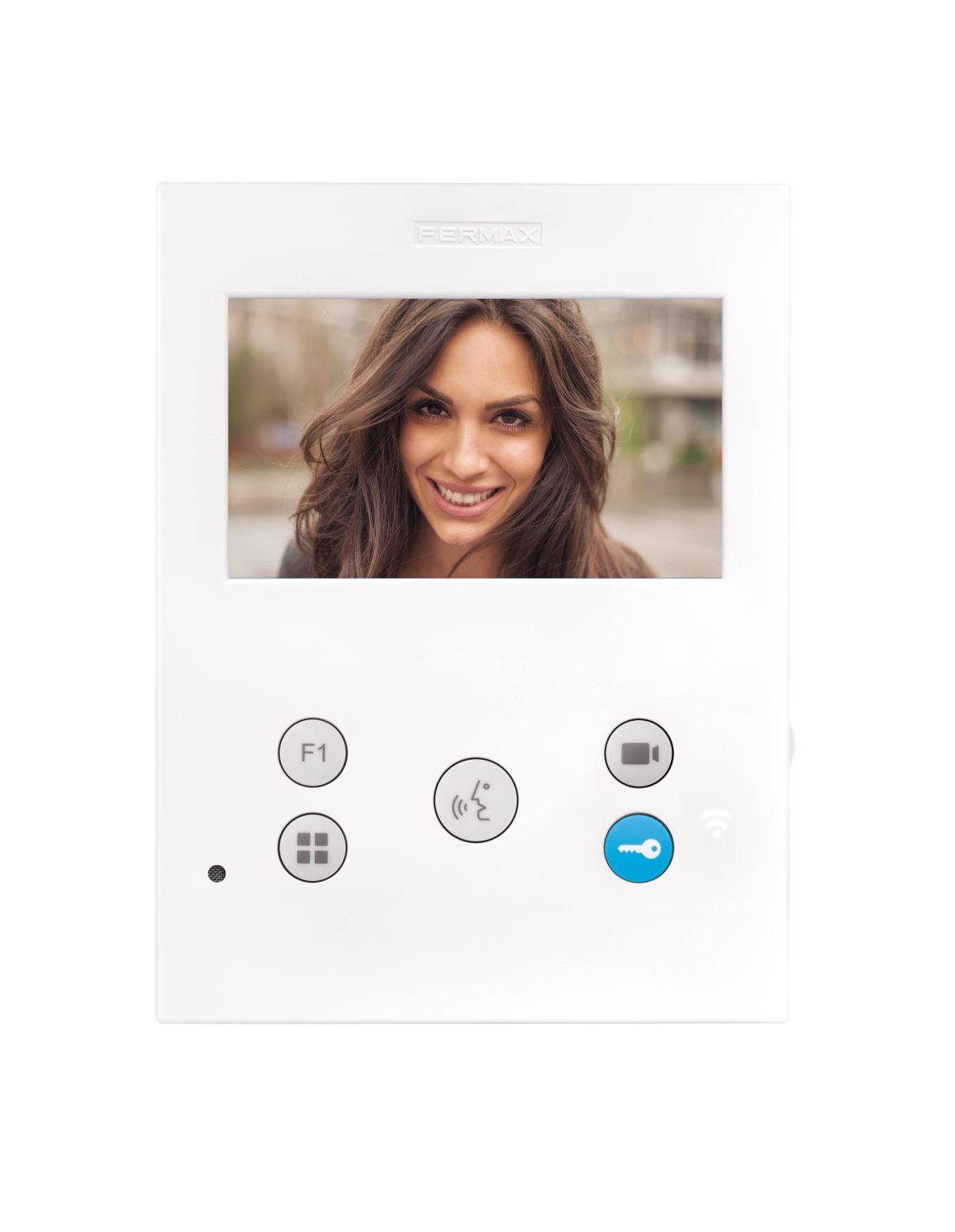

The VEO-XS WIFI DUOX PLUS hands-free monitor is characterized by its small size and thickness, extra-flat. Thanks to its OSD menu and the layout of the buttons, its interaction with the user is simple and intuitive. It is made of high-impact ABS plastic with a 4.3” widescreen color screen (16:9).
Its balanced design with pure lines is distinctive, modern and minimalist.

DUOX PLUS is the new digital technology that exceeds all expectations. Because it makes the difficult easy.

Characteristics of the VID MARINE VEO-XS WIFI DUOX PLUS 1 line kit:
- Sensor: 1/3" color CMOS.
- Effective pixels>, 340K. ( camera captures 720x480)
- Minimum external lighting: 0 lux.As it has LEDs, no additional lighting is required.
- S/N >,45dB.
- Frame rate 25 fps.
- Resolution>, 368x288 pixels.
- Video codec: H264 Highline Profile
- Auto iris.
- Auto BLC.
- Viewing angle 100º horizontal, 80º vertical.
- Fish eye correction.
- Color night vision through white leds.
- Digital zoom Pan &, Tilt.
- IP protection of the street panel: IP54 and IK09
- Technology: DUOX
- Weight: 3,179 kg

Includes:
- 44338 MARINE DUOX PLUS 1/L .ST1 plate: 150x180.
- 4641 ST1 embedding box: 130x160x55.
- 9449 VEO-XS WIFI DUOX PLUS 4.3” monitor.
- 9447 DUOX PLUS connector
- 4825 24VDC-2.5A DIN10 power supply + filter
- 4802 12Vca/1A DIN power supply 4
