Brand: FERMAX
Reference: 3390

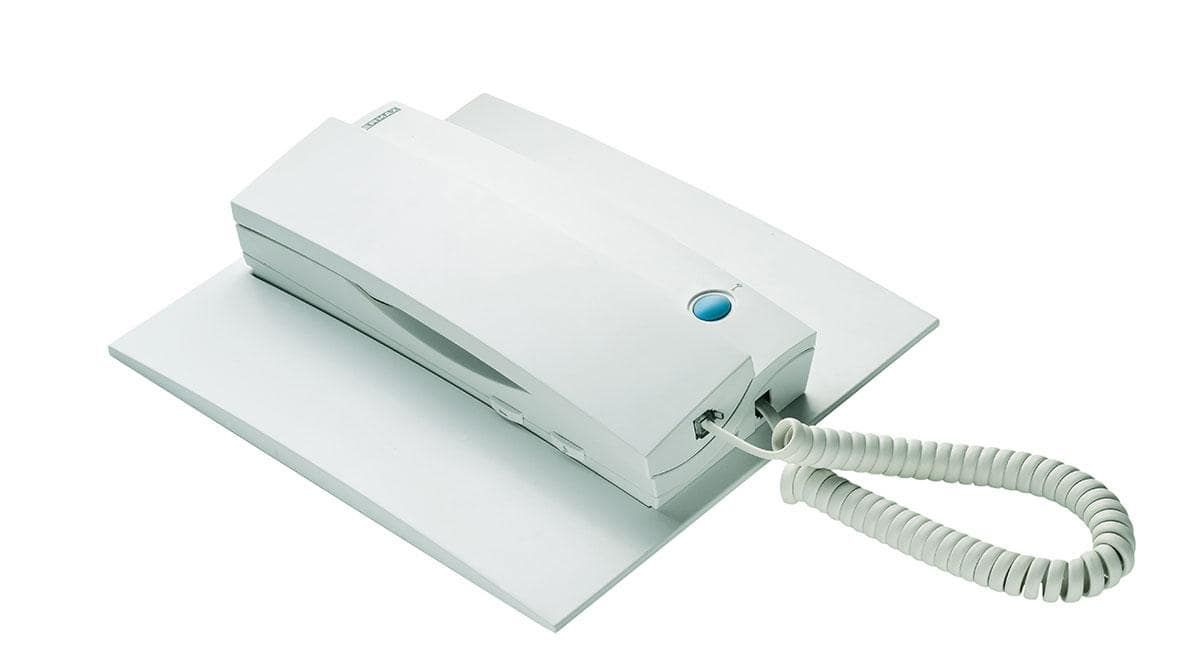

Audio terminal. Installed in homes, it allows communication with the street panel and the opening of the door. A new concept of telephone for the home. An integrated design, in keeping with new trends and lifestyles, simple and functional that combines quality and design. Its purity of lines, its technology and features make this equipment an elegant and perfect element for any home.
It is made of high-impact ABS plastic, with an easy-to-clean textured finish and ultraviolet protection for greater resistance to light.
Wall-mounted and easy to fix.
VDS system :
Simplified installation door entry and video door entry system, which does not use call wires per home.
The call is made by transmitting a digital call code generated by the VDS amplifier.
- In new construction, the installation can be done with the following type of cabling: UTP CAT5 / 5 Wires / 3 wires + Coaxial (video). It allows you to manage buildings with up to 199 homes, 2 entrance accesses and a central guard unit.
Maximum distance from the first access to the last home: 200 m.
- In replacement, you can change the analog doorphone to video intercom taking advantage of the existing wiring. The capacity and distance of the system will depend on the wiring of the installation.
The VDS amplifier includes a voice synthesizer as standard. When the lock release is activated, a message is emitted: "door open, close after entering".
The housing terminals require a simple programming that is carried out from the street panel. By means of this programming, a call code is assigned to each terminal (telephone or monitor).
Communication is private.
Features of the Loft VDS Basic Fermax telephone:
- Audio: bus of 3 wires.
- Video: UTP CAT5 / 5 Wires / 3 wires + Coaxial (video).
- Maximum distance from the first access to the last home: 200 m.
- The terminal incorporates a magnet in the area of the receiver that allows the arm to be well hung and fixed to the base.
- This prevents the arm from falling while hanging, damaging the wall and also prevents it from causing damage to the installation due to being badly hung.< br>- Surface screwable.
- System power supply: 18 Vdc
- Door release button and concierge call.
- Doorbell: for direct connection of the apartment call button to the monitor/ telephone.
- Private communication. Conversation secrecy.
- Standby consumption: 5 mA.
- Call consumption: 220 mA
- Active consumption: 15 mA
Kann man bei der Anlage den Klingelton und die Lautstärke ändern?
Guten Morgen, der Ton kann nicht geändert werden, die Lautstärke schon.
