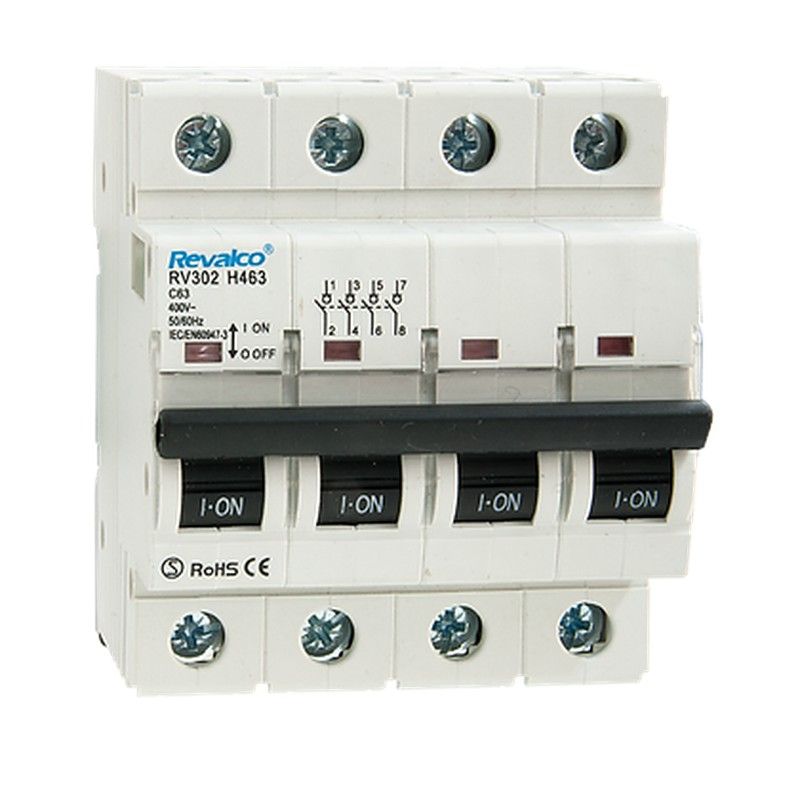

Maneuver switch RV302H 4P 63A
Brand: REVALCO
Reference: RV302H463
Offer: £23.61
PVP: £64.45
Product sold out, not available at this time.
Next stock entry on the way, expected
Description
With breaking capacity of 630~1000A, operating voltage of 240/415V AC. It allows the use of pin-type connection combs and cable connection capacity of 35 mm². In accordance with international standard IEC/EN60947-3.
Features
- Number of modules:
- 4
Details
More information
Main characteristics of the RV302H 4P 63A switch:
- Capable of switching electrical circuits under load.
- Adaptable to the padlock device.
- Contact position indication.
- Capable of quickly releasing the operation of stored energy.
- Featured high making and breaking capacity.
- High short-circuit current withstand capacity.
- Using as main switch for home installation and the like.
Technical characteristics of the RV302H 4P 63A switch:
- Model: RV302H
- Breaking capacity: 630~1000A IEC/EN60947-3
- No. of Poles: 4P
- Current nominal (A): 63
- Nominal voltage: 240/415V AC
- Nominal frequency: 50 / 60Hz
- Rated current withstand: 2KA 1sec
- Electromechanical resistance: 10000 cycles
- Rated impulse withstand voltage: 10KA
- Contact position indication

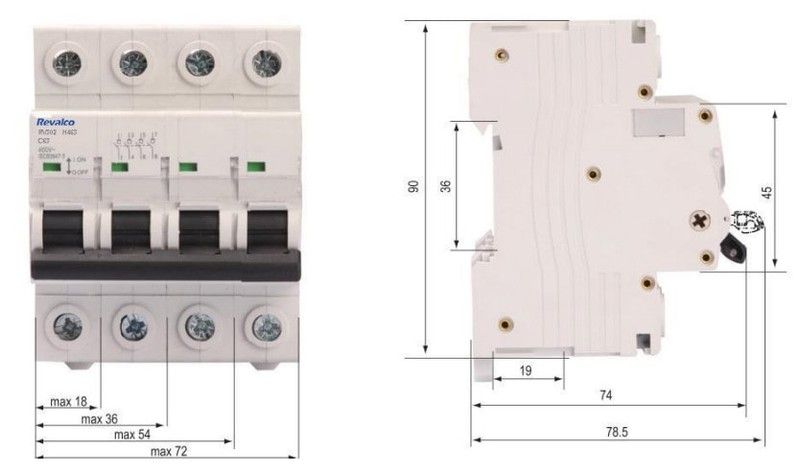

- Dimensions: 1 module per pole (18mm)
- Allows the use of combs connection type pin
- Connection capacity: Flexible conductor 35mm²
- Installation:
On symmetrical DIN rail 35.5mm
Panel mounting
- Terminal connection height: 19mm
- Capable of switching electrical circuits under load.
- Adaptable to the padlock device.
- Contact position indication.
- Capable of quickly releasing the operation of stored energy.
- Featured high making and breaking capacity.
- High short-circuit current withstand capacity.
- Using as main switch for home installation and the like.
Technical characteristics of the RV302H 4P 63A switch:
- Model: RV302H
- Breaking capacity: 630~1000A IEC/EN60947-3
- No. of Poles: 4P
- Current nominal (A): 63
- Nominal voltage: 240/415V AC
- Nominal frequency: 50 / 60Hz
- Rated current withstand: 2KA 1sec
- Electromechanical resistance: 10000 cycles
- Rated impulse withstand voltage: 10KA
- Contact position indication
- Dimensions: 1 module per pole (18mm)
- Allows the use of combs connection type pin
- Connection capacity: Flexible conductor 35mm²
- Installation:
On symmetrical DIN rail 35.5mm
Panel mounting
- Terminal connection height: 19mm
