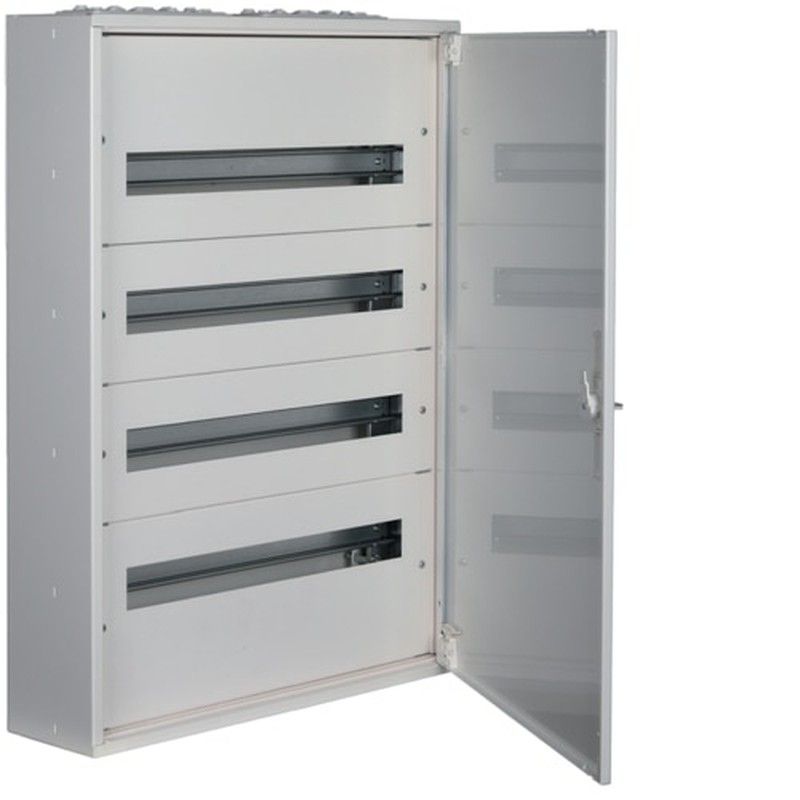

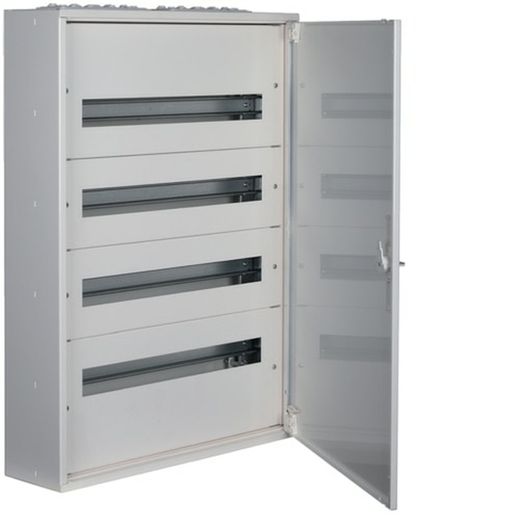

Metal surface distribution box 4 rows 96 Hager modules

The surface distribution box is ideal for electrical installations that require a safe and organized distribution. With capacity for 96 modules, this box is perfect for managing a nominal assigned current of 125A. Its opaque white design, with a RAL 9010 finish, combines discretion and elegance to adapt to any space.

It offers an IP30 protection index, ensuring protection against solid objects. It is made of steel and has a powder-coated finish on its surface, which guarantees its durability and reliability. The box is suitable for surface installation and not recessed. It does not allow padlock locking, maintaining a focus on simplicity and functionality.

In addition, it has protection class I, making it sturdy and safe for any installation environment.

Features of the 4-row 96-module metal surface distribution box:
- Mounting: Surface
- Number of modules: 96
- Compatible with DIN rail mounting: No
- Nominal assigned current: 125A
- Depth of the installed product: 150mm
- Internal depth: 150mm
- Height of the installed product: 791 mm
- Width of the installed product: 571 mm
- Width of the division units: 24
- Color: white
- RAL color: RAL 9010 - Pure white
- Material: Steel
- Type of surface treatment: Powder paint coating
- Adapted to Internal use: No
- Number of cable entries: 2
- Number of rows in the box: 4
- Number of sections across the width: 2
- Number of keys: 1
- IP protection index: 30
- Protection class: Class I
