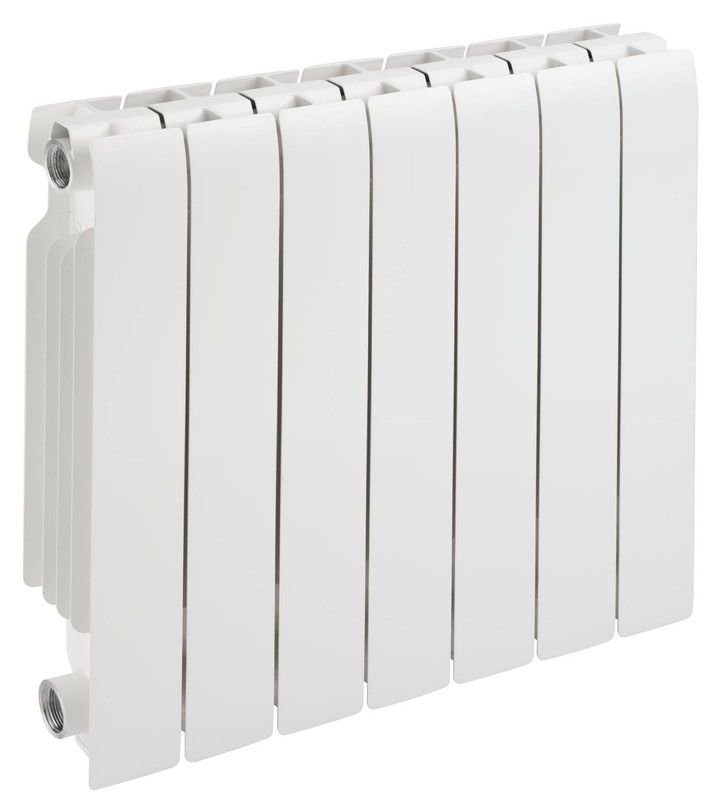

7 Element Radiator EUROPA 450C Ferroli

Ferroli aluminum radiator with high thermal emission for heating.

It is manufactured at the Ferroli de Burgos plant with the most up-to-date technology and maximum manufacturing control.

- Union of the elements by means of an elastic joint, which provides total watertightness to the installation of the Ferroli Europa C aluminum radiator.
- It has a high thermal emission and can work in low temperature conditions.
- Modern aesthetics. The Europa C aluminum radiator elements are individually painted in white RAL 9010.
- Maximum simplicity of cleaning and maintenance.
- Maximum operating pressure: 6 bar.
- The radiator completely from the installation, unless it is equipped with an automatic drain. The complete installation should not be isolated in the case of centralized installations if there are no safety elements.
- It has a high thermal emission with Ferroli aerothermal heat pump.
- Suitable for low temperature aerothermal installations with 30 and 40ºC.

- Number of elements: 7

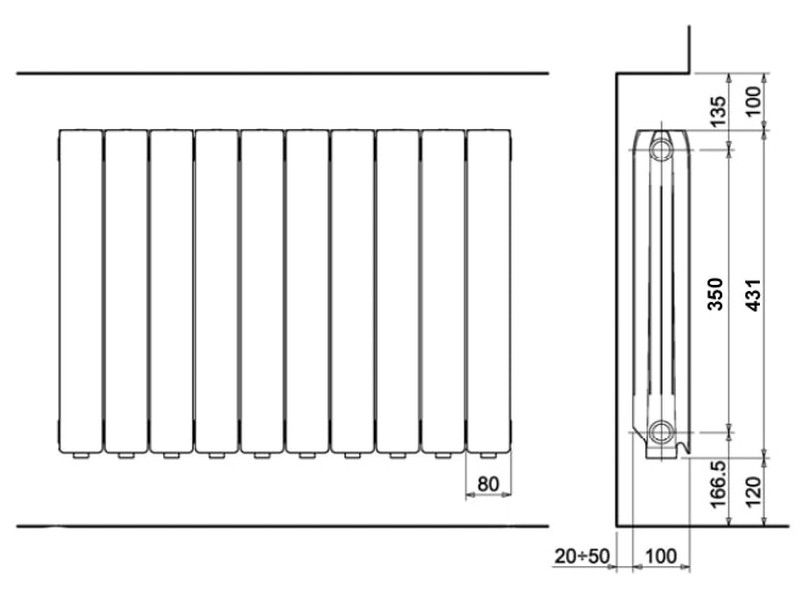

- Height of the elements : 450mm
- Warranty: 10 years

How to calculate the number of elements in 3 steps:

Step 1: Calculate the square meters of the room.

Step 2: Multiply the square meters by 120 (oversized calorific factor for greater savings: investment in radiators = lower consumption = savings) and you will obtain the necessary Kcal in the room.

Step 3: Divide the result of step 2 divided by 150, which is heat emission or Kcal emitted by a standard aluminum element.

The result is the number of elements you need for one h room.

Example:

We have a room of 15 m2.

15m2 x 120= 1800Kcal

1800Kcal / 150= 12

This room needs a 12 element radiator.
