Si-RM3 Dual Valve Wireless Manifold Probes
Brand: SAUERMANN
Reference: 25555
Offer: £226.66
PVP: £281.56
Product sold out, not available at this time.
Next stock entry on the way, expected
Description

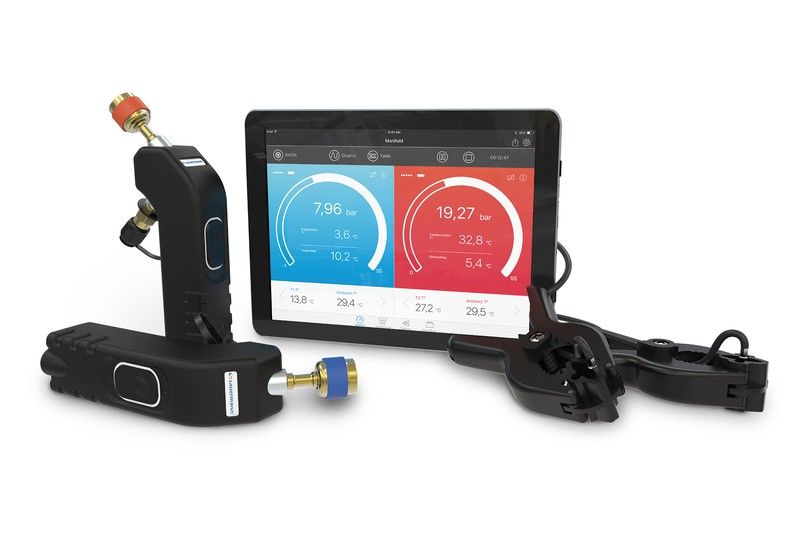

The Si-RM3 Wireless Gauge Bridge comes with two pressure probes that accurately measure high-side and low-side pressure and two temperature probes that are used to accurately and simultaneously provide real-time superheat/subcooling calculations.
Details
More information
Characteristics of the wireless double valve manifold probes:
- Lightweight and ergonomic design for easy connection to any installation.
- Dual valve system for simultaneous measurement of the refrigerant charge/discharge.
- Reduces the use of hoses.
- Elastomer coating for easy handling and protection.
- Two clamp-type temperature probes.
- Long-range low energy wireless connection.
- 2 pressure valves valves
- Pressure range From -1 to 60 bar
- Accuracy* ±0.5% of full scale
- Available units: psi, MPa, kPa, bar, foot of head
- Resolution : 0.1 psi, 0.001 MPa, 1 kPa, 0.01 bar, 1 foot of head
- Overpressure: 65 bar
- Burst pressure:150 bar
- Use temperature: -20 to 50°C
- Storage temperature: -20 to 60°C
- Number of probes: 2 clamp type probes
- Measurement range** -40 to 150°C
- Accuracy* ± 1.3°C***
- Maximum operating temperature Clamps: 1 50°C / Cable: 105°C / Handle: 90 ºC
- Resolution 0.1°C, 0.1°F, 0.1 K
- Pipe diameters: from 6 to 42 mm
- Cable: 2 m long, with reinforced 3-point jack connector, Ø 3.2 mm, PVC, maximum temperature 105 ºC
This pack contains:
● 2 SMART wireless pressure probes
● 2 temperature probes< br>● Adjustment certificate
● Simplified user manual
● 6 AAA batteries
● Elastomer rings
● Carrying case
- Lightweight and ergonomic design for easy connection to any installation.
- Dual valve system for simultaneous measurement of the refrigerant charge/discharge.
- Reduces the use of hoses.
- Elastomer coating for easy handling and protection.
- Two clamp-type temperature probes.
- Long-range low energy wireless connection.
- 2 pressure valves valves
- Pressure range From -1 to 60 bar
- Accuracy* ±0.5% of full scale
- Available units: psi, MPa, kPa, bar, foot of head
- Resolution : 0.1 psi, 0.001 MPa, 1 kPa, 0.01 bar, 1 foot of head
- Overpressure: 65 bar
- Burst pressure:150 bar
- Use temperature: -20 to 50°C
- Storage temperature: -20 to 60°C
- Number of probes: 2 clamp type probes
- Measurement range** -40 to 150°C
- Accuracy* ± 1.3°C***
- Maximum operating temperature Clamps: 1 50°C / Cable: 105°C / Handle: 90 ºC
- Resolution 0.1°C, 0.1°F, 0.1 K
- Pipe diameters: from 6 to 42 mm
- Cable: 2 m long, with reinforced 3-point jack connector, Ø 3.2 mm, PVC, maximum temperature 105 ºC
This pack contains:
● 2 SMART wireless pressure probes
● 2 temperature probes< br>● Adjustment certificate
● Simplified user manual
● 6 AAA batteries
● Elastomer rings
● Carrying case
