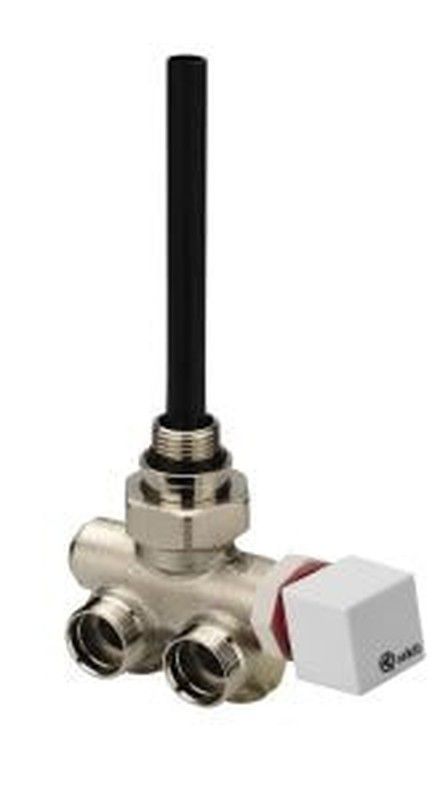

Thermostatic valve left wall 1/2 "manual handle Orkli

The monotube thermostatic valves for heated towel rails can perform two functions simultaneously. On the one hand, the hydraulic circuit can be balanced, easily acting on the shutter with an Allen key, in this way the maximum flow into the radiator can be limited.

On the other hand the opening or closing of the valve. This function can be performed manually or automatically by placing one of our thermostatic heads, in this way the temperature control is automatically achieved at the preset value in the room where the valve is installed, in addition to providing energy savings.

For correct system operation, it must be ensured that the probe inserted into the radiator exceeds approximately 2/3 of its total length. With the handle and stem in the closed position, the radiator is completely isolated, allowing intervention on it without having to drain the heating circuit.

Although these valves are reversible, it is recommended that the hot water inlet be from the side farthest from the handle, as shown in the images.

Characteristics of left wall thermostatic valve 1/2 "manual handle:
- Model: Wall
- Type: Left head.
- Size: 1/2 "
- Tube connection: M24x1.5
- Head connection: M28x1
- Radiator connection: 1/2 "M
- Brass body EN 12165 CW617
- Drive shaft Stainless steel
- Brass closing stem EN 12165 CW617
- EPDM hydraulic seals
- ABS actuator handle
- PA66 probe holder
- PA66 Probe or Pipette
- All valves are nickel plated

Performance:
- Medium water, glycol solutions
- Maximum percentage of glycol 30%
- Differential pressure Max. 1 bar
- Max Pressure. working pressure 6 bar
- Fluid operating temperature 5 to 100 ° C
