WAY 7" 2/L video kit

For those who like to do things differently, FERMAX presents the new Kit Way.

Choose between 20 different melodies, customize monitor settings, record videos and capture images of your visits, and everything this in a single kit.

The Way kit includes a street panel made of zamak with a color CCD camera as standard. Surface installation.

- Intercom: Establishes communication between the monitors installed inside the home.
- Player: After 3 seconds, the monitor automatically records a video (if there is a micro card SD installed) or a photo of the visits. You also have the option to manually take a photo while answering the call. The videos/photos recorded from the street panel are displayed on the monitor screen.
- Settings: Brightness/contrast, selection of melodies, date and time, call volume for day and night, language selection (16 languages ), etc.
- “Do not disturb” function: 1 hour, 8 hours or permanently.
- Call log: All calls both from the panel to the monitor, from the monitor to the panel and between monitors , are recorded and can be reviewed later.

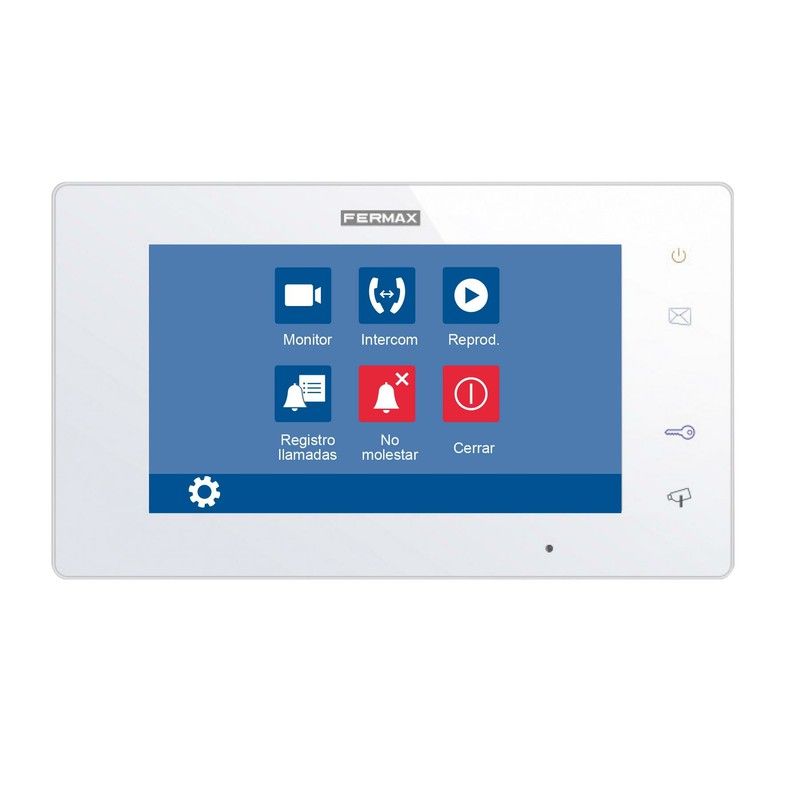

- Capacitive touch screen: TFT 7” color digital monitor with capacitive touch screen that allows intuitive use.
- Visor: Protects the street panel from rain, snow , etc. Included in the kit.

Characteristics of the WAY 7" 2/L video kit:

- Technology: 2 non-polarized wires

Monitor specifications:
- Power supply for the monitor: DC 24~28V.
- Power consumption: Standby 12mA, Operation 350mA.
- Monitor screen: TFT digital color 7". Capacitive screen.
- Video signal: 1 Vpp, 75Ω, standard CCIR.
- Wiring: 2 wires, non-polarized.
- Dimensions: 225(H) x 131(V) x 18(P)mm.
- Operating temperature: [-20ºC , +55ºC]

Specifications of the street panel:
- Made of Zamak.
- Backlit card holders.
- Visor for surface mounting.
- Color CCD camera high sensitivity.
- Lighting sensor.
- Control of a relay to activate a lock release.
- Measurements: 95(H) x 155(V) x 25(P)mm.
- With the power supply included in the kit you can connect a 12Vdc 250mA lock release.
- IP43
- Operating temperature: [-25ºC, +70ºC]
- Weight: 2,944 kg

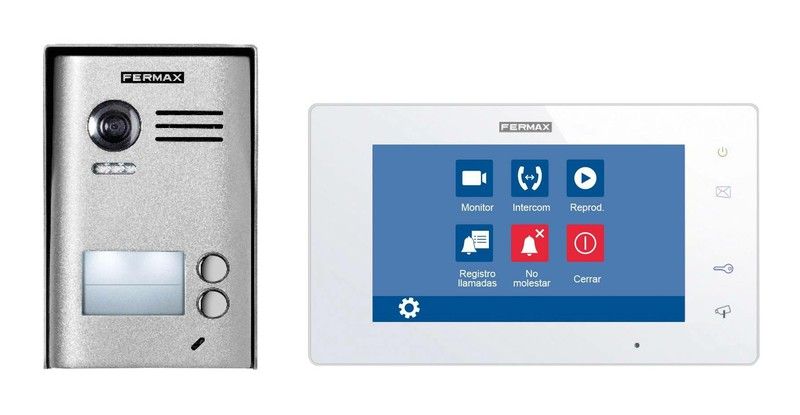

The kit includes:
- Entrance panel with visor.
- 7” TFT color monitor with capacitive touch screen.
- Power supply.
