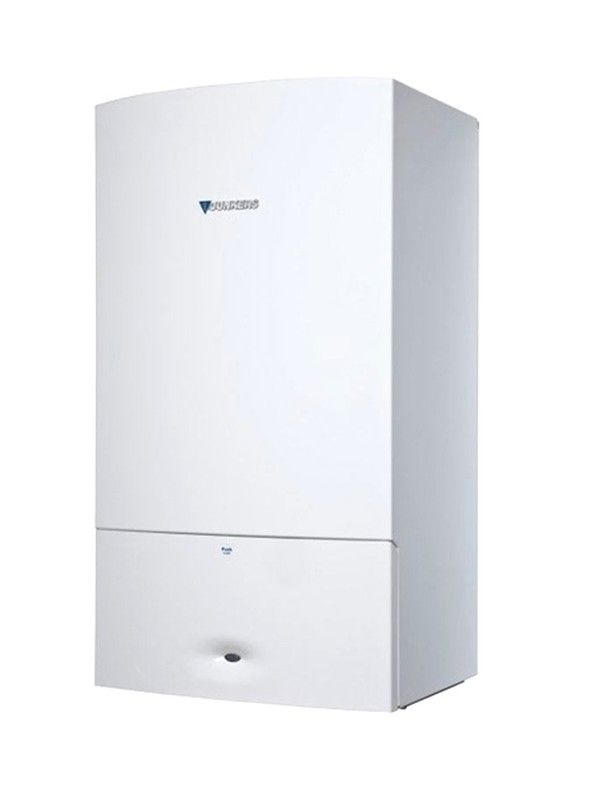

Boiler ZWBE 25 / 25-3C CerapurComfort Gas Natural Junkers

In addition to easy navigation through the menus, the new Heatronic i electronics achieve an optimal setting for better operation. All this visible, thanks to the large multifunction display with icons and text messages that allow to know the state of the boiler. Facilitating the installation of the boiler is our priority, therefore we provide a frame with a built-in mounting template. This reduces installation time. Its modular mounting allows a single professional to complete the installation.

Characteristics of the ZWBE 25 / 25-3C CerapurComfort Gas Natural Junkers Boiler :

- Energy classification A (heating and hot water).

- It allows to reach A + classification in combination with Junkers controllers.

- Models of 25 kW in heating and 25 and 30 kW in hot water.

- Microaccumulation and QuickTap system in hot water.

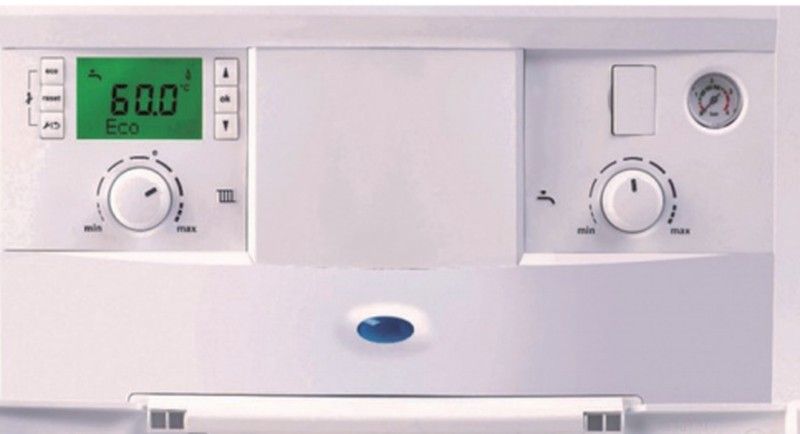

- Large multidisplay with informative icons and text messages.

- Frame with template included to facilitate assembly.

- Compatibility with the current and new range of controllers.

- Bosch Heatronic i electronics with climate curve management without the need for additional modules.

- Aluminum-Silicon heat exchanger, designed and manufactured with Bosch technology

- Compatible with solar systems.

Technical characteristics of the ZWBE 25 / 25-3C CerapurComfort Gas Natural Junkers Boiler:

- Maximum nominal heat output (kW): 24

- Max pressure Circuit (bar): 3

- Capacity of expansion vessel (l.): 6

- Production method: Microaccumulation with QuickTap system

- Max. Rated heat output (kW): 25

- Instant flow D T25ºC: 14.3

- ACS efficiency: 85%

- Heating efficiency: 94%

- Indoor sound power level (dB): 50

- Nitrogen oxide emission (mg / kWh) for Natural Gas: 40

- Compact dimensions: 710 x 400 x 330 mm

- Total weight (kg): 35

For added convenience combine with Junkers Wireless Modulating Thermostat
