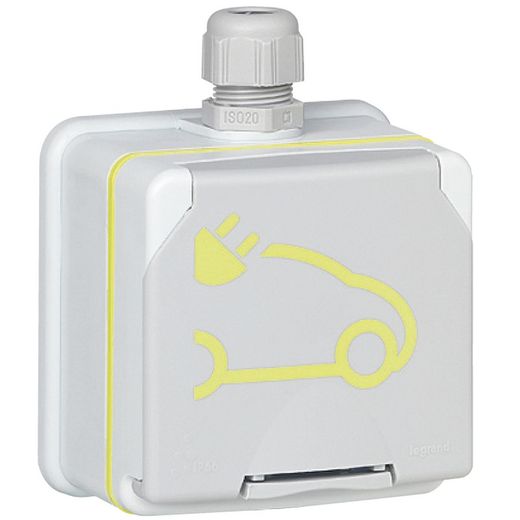

2P+T surface socket Green'up Access
Brand: LEGRAND
Reference: 090472
Description
25 kWh / 8h / 230V Green'up Access sockets for electric vehicles. They are used to safely charge rechargeable electric vehicles and hybrid vehicles that support the mode 2 cable (compatible with mode 1)
Packs that include this product
Details
25 kWh / 8h / 230V Green'up Access sockets for electric vehicles. They are used to safely charge rechargeable electric vehicles and hybrid vehicles that support the mode 2 cable (compatible with mode 1).
Connects to the electrical panel through a dedicated 3 x 2.5 mm line (1 line per socket) protected by a 30 mA - 20 A curve C, type A or HPi RCCB (or a 30 mA type A or HPi RCCB + 20 A curve C circuit breaker)
Sensing system, vehicles pick up the Green' Up secure infrastructure and choose the maximum power that can be supplied through the outlet, resulting in shorter charging times.
Recommended height of installation: 1.30 m from the ground
Suitable for use in homes and workplaces
Characteristics of the Green'up 2P+T surface socket Access
- Mode 1 and mode 2 outlets - 3.2kVA
- High-resistance mechanisms with silver contacts
- Single-phase outlets
- screw connection
- Power: 230 V
- To charge 1 vehicle
- Conforms to IEC 60-884-1 IP 66 - IK 08 surface installation
- Suitable for installation in private homes
- Plastic socket with cover
- German standard socket
- Supplied complete with surface mounting box fitted with an ISO 20 cable gland
- Supplied with base Ref. 090478 to hang the control box from the vehicle charging cable < br>- Dimensions (H. x W x D): 98x98x70mm (excluding cable gland)
Comments (16)
Questions (1)
Boa noite, gostaria de saber se a tomada Green Up so tem entrada a partir de cima ou se ha a possibilidade de ela ser aberta por tras e estar isolada em todo o arredor. Cumprimentos obrigado.
Bom dia, infelizmente o tiro é só de cima.
